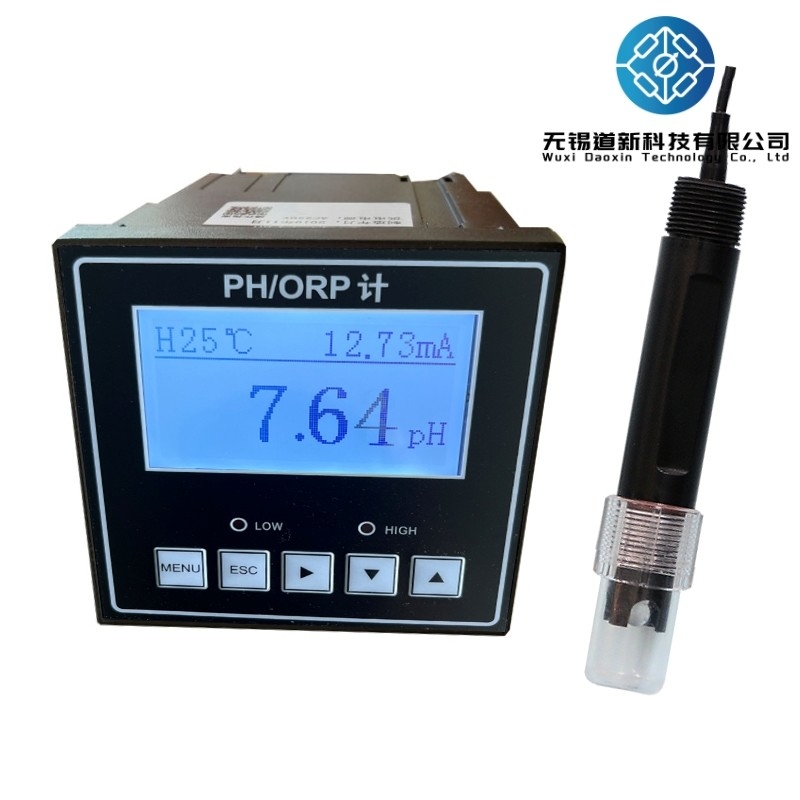

PH ORP Online Water Quality Analyzer 0 To 14pH Water Analyzer Instrument

Name: PH ORP Online Water Quality Analyzer 0 To 14pH Water Analyzer Instrument
Brand: Wuxi Daoxin Technology Co., Ltd.
SKU: DX-PH/ORP
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Wuxi Daoxin Technology Co., Ltd.
Model Number:	DX-PH/ORP

Detail Information

Place of Origin:

China

Brand Name:

Wuxi Daoxin Technology Co., Ltd.

Model Number:

DX-PH/ORP

Measurement Range::

PH: 0.00 To 14.00 PH / ORP: -2000 To +2000 MV / Temperature: -10 To 150.0°C

Resolution:

PH: 0.01 PH / ORP: 1 MV / Temperature: 0.1°C

Basic Error:

PH: ±0.01 PH / ORP: ±2 MV / Temperature: ±0.3°C

Current Output:

4 To 20 MA (Load Resistance < 500Ω)

Communication Output:

RS485 MODBUS RTU

Dual Relay Control Contacts:

5A 250VAC, 5A 30VDC

Power Supply Voltage:

24VDC / 110VAC / 220VAC

Dimensions:

96×96×120mm

Highlight:

High Light

Highlight:

ORP Online Water Quality Analyzer

PH Online Water Quality Analyzer

14pH Water Analyzer Instrument

Trading Information

Minimum Order Quantity:

Packaging Details:

carton、18cm*18cm*18cm

Delivery Time:

2-5 work days

Payment Terms:

T/T, L/C, Western Union

Supply Ability:

100+set+5

Product Description

Continuous Monitoring Of PH ORP And Temperature With Industrial PH/ORP Online Analyzer

Overview

The Industrial pH/ORP Online Analyzer can be equipped with various types of pH or ORP electrodes and is extensively used in numerous industries such as power plants, petrochemicals, metallurgical electronics, mining, papermaking, bio-fermentation engineering, pharmaceuticals, food and beverage, environmental water treatment, aquaculture, and modern agriculture. It continuously monitors and controls the pH value (acidity or alkalinity), ORP value (oxidation-reduction potential), and temperature of aqueous solutions.

Main Technical Specifications

Measurement Range
pH	0.00 to 14.00 pH
ORP	-2000 to +2000 mV
Temperature	-10 to 150.0°C
Resolution
pH	0.01 pH
ORP	1 mV
Temperature	0.1°C
Basic Error
pH	±0.01 pH
ORP	±2 mV
Temperature	±0.3°C
Stability
pH	≤0.02 pH/24h
ORP	≤2 mV/24h
Current Output	4 to 20 mA (Load resistance < 500Ω)
Communication Output	RS485 MODBUS RTU
Dual Relay Control Contacts	5A 250VAC, 5A 30VDC
Power Supply Voltage	24VDC / 110VAC / 220VAC
Power Consumption	≤3W
Dimensions	96×96×120mm
Installation	Panel mount/embedded
Panel Cutout Size	92×92mm
Protection Grade	IP54
Instrument Weight	0.3 kg
Operating Environment
Ambient Temperature	-10 to 60°C
Relative Humidity	No more than 90%
Free from strong magnetic field interference except the Earth's magnetic field.
