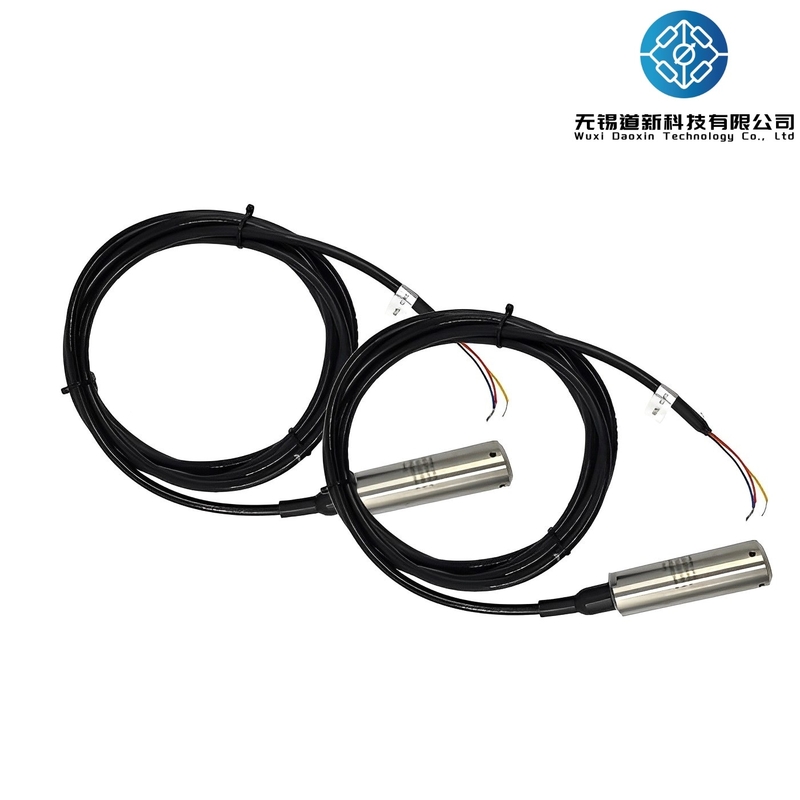

Explosion Proof Fluid Level Meter High Precision Small Water Level Gauge Indicator

Name: Explosion Proof Fluid Level Meter High Precision Small Water Level Gauge Indicator
Brand: Wuxi Daoxin Technology Co., Ltd.
SKU: DX-131L
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Wuxi Daoxin Technology Co., Ltd.
Model Number:	DX-131L

Detail Information

Place of Origin:

China

Brand Name:

Wuxi Daoxin Technology Co., Ltd.

Model Number:

DX-131L

Pressure Range:

0~1...500mH2O

Output Signal:

4~20mA, 0~5Vdc, 1~5Vdc. 0~10Vdc

Pressure Interface:

G1/4,input Type

Compensation Temperature:

-10°C~70°C

Secondary Containment:

3 Times Rated Pressure

Power Supply:

24VDC, 11~30Vdc, Or Customized

Operating Temperature:

-40°C~85°C Or -40 °C ~125 °C

Accuracy:

±0.25%F.S, ±0.5%F.S, ±1.0%F.S

Stability:

Typical Value: 0.1%F.S Max.: 0.2% F.S/year

Overload Pressure:

1.5times Rated Pressure

Highlight:

High Light

Highlight:

small water level gauge indicator

explosion proof fluid level meter

fluid level meter high precision

Trading Information

Minimum Order Quantity:

Packaging Details:

carton、30cm*30cm*5cm

Delivery Time:

2-5 work days

Payment Terms:

T/T, L/C, Western Union

Supply Ability:

100+set+5

Product Description

Explosion Proof Fluid Level Meter High Precision Small Size For Water Level With Pressure Interface G1/4 Or Input Type

DX-131L series level transmitter is a special structure and use of products, high precision, small size and good stability. Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates. Customized solutions for various fluids can be supplied.

Parameter

Spec.	Numerical value
Accuracy	±0.25%F.S, ±0.5%F.S, ±1.0%F.S
Stability	Typical value: 0.1%F.S Max.: 0.2% F.S/year
Operating Temperature	-40°C~85°C or -40 °C ~125 °C
Pressure range	0~1……500mH2O 9.8KPa…4900KPa 0.09bar…49bar 0.09atm…48atm 1.4psi… 711psi 2.8inchHg…1400inchHg
Overload pressure	1.5times Rated pressure
Secondary containment	3 times rated pressure
Compensation temperature	-10°C~70°C
Medium compatibility	All Caustic Medium Compatible with 1Cr18Ni9Ti and 316L
Insulation	〉100MΩ@50V
Electrical Connections	waterproof fixed cable + Two rectangle circle+ Sealing Rings+ seal gum+ Pure glue protection grade : IP68
Pressure interface	G1/4,input type
Electrical properties	2 line	3 line
Output signal	4~20mA	0~5V	0~10V
Power supplies	10~30Vdc	80~30Vdc/ac	11~30Vdc/ac
Load resistance	(U-10)/0.02(Ω)	〉100kΩ
Response time	10ms
Electric strength	500Vac@1 second
Graduate Certificate Programs	certificate of explosion-proof, CE
Electromagnetic compatibility	electromagnetic radiation EN50081-1/-2, electromagnetic susceptibility: EN50082-2
Lightning protection	air conduction resistance 8000V,case, cable conduction

Feature

Diffused-Silicon oil filled core
All kinds of structure to satisfy different users
Easy to use with submersible measuring
Reinforcing rib for liquid cable available
Intrinsically safe explosion proof, Isolation explosion proof, CE
Four layers of waterproof protection
Multiple pressure range and signal output
Non-polar 2 wire system current output
Can be used in lightning protection products

Explosion Proof Fluid Level Meter High Precision Small Size For Water Level with pressure interface G1/4 or input type 0

Application Field

Deep well level measuring
Hydrologic measurement for river, lake, sea
Sewage treatment
Circulating liquid consumption monitoring
Diversion project
Cloudy level measuring
Fluid reservoir level measuring
Water-saving irrigation
