External Clamped Ultrasonic Flowmeter 4-20mA Non Contact Ultrasonic Flow Meter

The External Clamped Ultrasonic Flowmeter Is Suitable For Non-Contact Measurement In Various Media

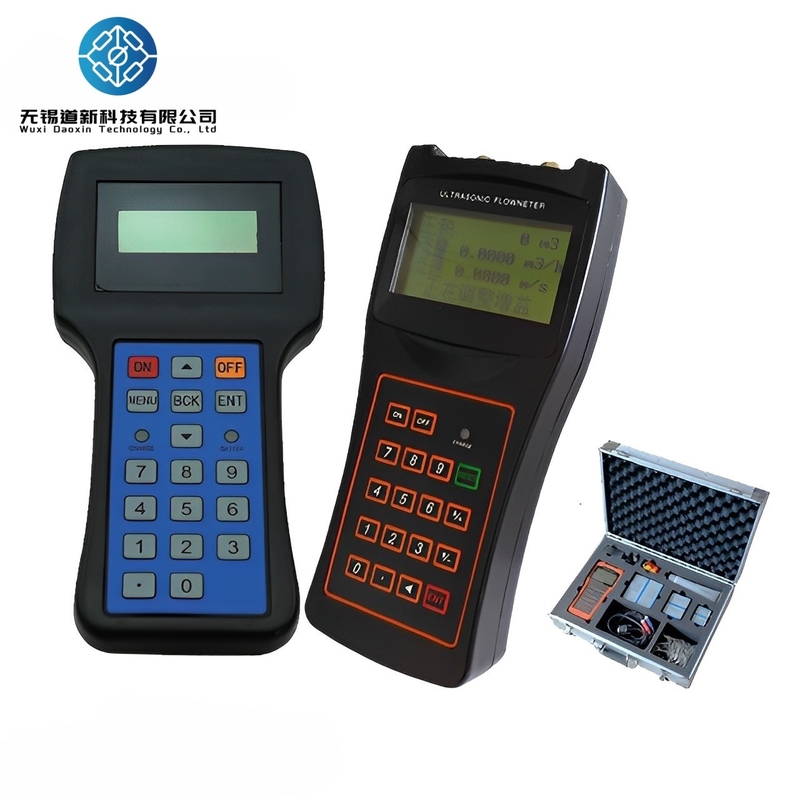

DX-UFP2000 ultrasonic flow meter is designed to measure the fluid velocity of liquid in a full/closed pipe. It is a portable measurement system which is both easy to install and use, which is ideal for flow surveys. Built-in SD card and printer can timely or regularly print pre-set measuring results. Temperature and heat can be measured by connecting clamp on temperature sensor.

The DX-UFP2000 operates according to the difference in the transit time of flight measured, and determines the flow velocity by measuring the travel time of a pulse from one transducer to the next. Flow in the same direction takes less time to travel to the second transducer than does flow in the opposite direction. Electroacoustic transducers receive and emit brief ultrasonic pulses through the liquid of the pipe. Transducers are vertically placed at both sides of the measured pipe. Sensors are placed on the pipe and fastened by means of a clamp. The display will quickly show the flow velocity.

The DX-UFP2000 can be used for metallic, plastic and rubber tubes.

Features

• 1% accuracy.
• Non-contact to liquid measurement, so non-conductive, corrosive, explosive liquid can be measured.
• Wide range for various application fields. (DN15-DN6000)
• Portable handheld host meter with clamp-on sensors measure liquid flows nearly anywhere.
• Built-in SD card and printer can timely or regularly print pre-set measuring results.
• No mechanical drive in ultasonic flowmeter, parts are rarely damaged. Maintenance free and long operating life.
• Easy and quick installation. Save time with no pipe cutting or process shutdown.
• No obstruction measurement, no pressure loss.

Specifications

Description of parts
