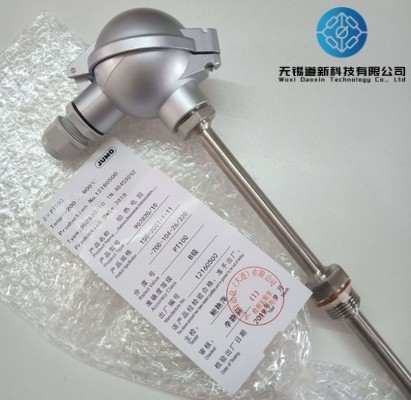

316L Head Mounted Temperature Transmitter Sensor RTD PT100 To 4 20mA

Name: 316L Head Mounted Temperature Transmitter Sensor RTD PT100 To 4 20mA
Brand: Wuxi Daoxin Technology Co., Ltd.
SKU: 902820/20
Availability: InStock

Product Details:

Place of Origin:	Germany
Brand Name:	Jumo
Certification:	CCC CE ISO
Model Number:	902820/20

Detail Information

Place of Origin:

Germany

Brand Name:

Jumo

Certification:

CCC CE ISO

Model Number:

902820/20

Measurement Range:

-200 To 1300°C

Accuracy:

0.5%

Material:

SS304,SS316,SS310

Application:

Industrial Temperature Measuring

Customized Support:

OEM, ODM

Warranty:

1 Year

Highlight:

High Light

Highlight:

Head Mounted Temperature Transmitter Sensor

316L Temperature Transmitter Sensor

RTD PT100 To 4 20mA

Trading Information

Minimum Order Quantity:

Packaging Details:

carton、18cm*18cm*50cm

Delivery Time:

20 work days

Payment Terms:

T/T, L/C, Western Union

Supply Ability:

100+set+5

Product Description

JUMO Programmable & Universal Input Thermocouple+RTD PT100 Head Mounted Temperature Transmitter with 4-20ma Ou

PT100 RTD Thermocouple temperature transmitter 4-20mA

316L Head Mounted Temperature Transmitter Sensor RTD PT100 Transmitter 20mA

Product Description

Integrated temperature transmitter, compact size, cost-effective, economical and practical, output two-wire 4~20mA signal, designed according to the latest explosion-proof regulations GB3836 in line with international IEC standards; explosion-proof mark dⅡCT6, suitable for class IIC or less, ignition temperature T6 Above, temperature measurement in explosive gas occasions. It is suitable for places with explosive gas danger in the temperature group interval of dⅡCT6.

Range(℃):-50~0;-50~50;0~50;0~80;0~100;0~120;0~150;0~200;
installation:immersion length(mm):50mm,or customized
Probe diameter(mm):Φ6,Φ8, Φ10, Φ16mm
Sensor	Pt100 orPt1000 or thermocouple
Output signal	4~20mA 0~5VDC 0~10VDC
wire	2wire 3wire 4-wire,6-wire
Power supply	9~30VDC 9~30VDC 15~30VDC
Accuracy	±0.1%FS ±0.3%FS ±0.5%FS
pressure	40bar(Max:300bar)
Long term stability	±0.1%FS
Response time	T=50℃ 2.3s;T=90℃ 5.4s
Electric protection	Reverse polarity and overload protection, optional surge voltage protection
Environment temperature	-40~+85℃
Storage temperature	-40~+125℃
Shell material	316 stainless steel
Contact material	316L stainless steel
Protective grade	IP65

Features

Simple installation, multiple temperature measurement ranges are available

Gas-liquid dual purpose, any medium compatible with 316L

A variety of linear analog signals are optional

Fast response and high accuracy

Good long-term stability, low energy consumption, small size

Scope of application

Piping and ventilation system

Hydraulic and pneumatic system

Cooling system and heating system

Water supply and hot water system

Air conditioning system

Automatic system temperature measurement and control

316L Head Mounted Temperature Transmitter Sensor RTD PT100 Transmitter 20mA 0
