SS304 Pressure Transmitter Manifold 3 Valve Manifold For Pressure Transmitter

SS304 Pressure Transmitter Manifold High Pressure 3 Way

3 port gas valve manifold for differential pressure transmitter

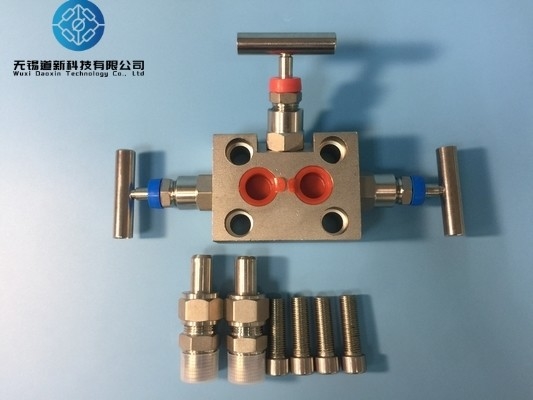

Product name: Integrated three valve manifold

Product model: SF-SB(304SS-3-MA6-NF2)

Product thread: 1/2NPT(F)

Product Specifications: DN6

Applicable temperature: 200°C (high temperature can be customized)

Nominal pressure: 32.00MPa (pressure can be customized)

Material: 20# 304SS 321 316SS 316L 2205 Monel 400

Product Specifications:

1. Composition: The integrated three-valve group is composed of a valve body, two stop valves and a balance valve.

2. Operation procedure: The operation procedure when the integrated three-valve group and the differential pressure transmitter are put into operation: First, open the two drain valves on the differential pressure transmitter, then open the balance valve, and then slowly open the two stop valves , Remove the air or dirt in the pressure guiding pipe, close the two drain valves, and then close the balance valve, the transmitter can be put into operation. The operating procedure of the zero point online calibration of the differential pressure transmitter: first open the balance valve and close the two shut-off valves, then the zero point calibration of the transmitter can be carried out.

Entrance (2×): M20×1.5/Ф14 (live-connected welding conduit) (center distance 35mm).

Outlet (2×): The center distance of the method flange (connected to the transmitter) is 54mm.

The center distance of the 4 bolt holes is 54mm. ×41.3mm.

Bolt thread: UNF7/16-20, M10 ×1.5, M12 ×1.75

Pressure rating: 16MPa-40MPa, 3532PSi-6000PSi

Applicable temperature: -65°F(-54°C) —450°F(232°C) —1200°F(648°C)

The integrated three-valve group can be connected with: 3051, 3095, 1151, EJA, FX-2, FCX-A/C and Honeywell ST3000 series transmitters

Features ss316 water manifold valve

1. Handle: Stainless Steel straight handle.

2. Packing Cap realize packing outside.

3. Bolt in the plate help fix needle valve on it, no need to disconnect packing
4. Whole-set valve cover design prevent from the item disconnection

Applications 3 port gas valve manifold

3 way valve manifold can replace the traditional three valve, and support the use of domestic and international differential pressure transmitter , widely used in electric power, chemical, metallurgy , textile automatic control systems and scientific research departments
