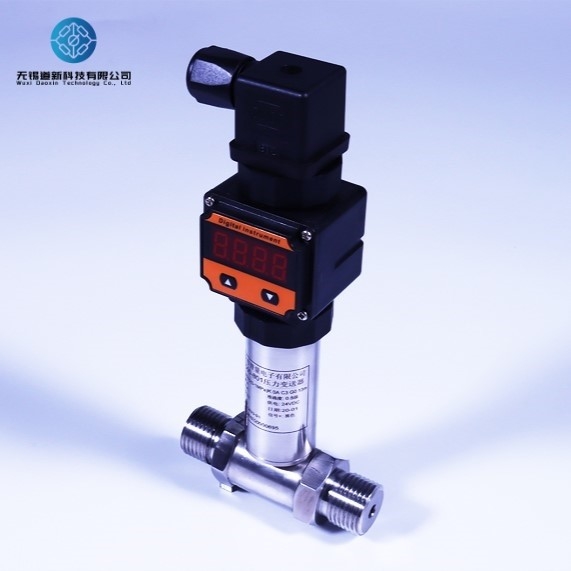

Product Description:
The measurement range for the Pressure Instrument Series is selectable, with options ranging from -50Kpa to +50Kpa. This flexibility allows for customization to meet the specific needs of each application.
The wetted parts of the Pressure Instrument Series are made of cast aluminum, which is a durable and corrosion-resistant material that can withstand a variety of harsh environments.
The Pressure Instrument Series is designed to measure various types of pressure, including gauge pressure, absolute pressure, and differential pressure. This makes it suitable for a wide range of applications, from HVAC systems to industrial processes.
The Pressure Instrument Series requires a supply voltage of 12-36V DC, which is standard for many industrial applications. This ensures compatibility with a variety of power sources and allows for easy integration into existing systems.
The Pressure Instrument Series is designed to withstand overload pressure, ensuring reliable and accurate measurements even in the most demanding applications.
In summary, the Pressure Instrument Series is a versatile and reliable product line that provides precise and accurate pressure measurements for a variety of applications. With a range of output signals, selectable measurement ranges, and compatibility with a variety of power sources, this product line is a great choice for any application that requires accurate and reliable pressure measurements.
Technical Parameters:
| Technical Parameter |
Description |
| Pressure Type |
Gauge Pressure, Absolute Pressure, Differential Pressure |
| Supply Voltage |
12-36V DC |
| Output Signal |
4-20mA, 0-10V, 0-5V, RS485 |
| Mounting Type |
Impulse Line Connection |
| Accuracy Class |
±0.25% FS |
| Measurement Range |
-50Kpa to +50Kpa (Selectable) |
| Operating Temperature Range |
-40°C to 85°C |
| Static Pressure Range |
0-0.1 MPa |
| Wetted Parts Material |
Cast Aluminium |
The Pressure Instrument Series product features an Impulse Line Connection mounting type, making it suitable for use in HVAC systems. The wetted parts material is Cast Aluminium, and the measurement range is selectable from -50Kpa to +50Kpa. The device has a static pressure range of 0-0.1 MPa, and an accuracy class of ±0.25% FS. The product has a supply voltage of 12-36V DC, and can output a signal of 4-20mA, 0-10V, 0-5V, or RS485.
Applications:
The mounting type of the DX-131DP is impulse line connection. The supply voltage ranges from 12-36V DC, which is suitable for most applications. The wetted parts material is cast aluminum, which is known for its durability and strength. The accuracy class of the product is ±0.25% FS, which ensures precise measurements in various scenarios. The static pressure range of the instrument is 0-0.1 MPa, which is perfect for applications that require low-pressure measurements.
The Pressure Instrument Series is suitable for various occasions and scenarios. It is commonly used in the following industries:
- Oil and Gas industry: The DX-131DP is ideal for measuring the pressure of gas and oil in pipelines or tanks.
- Water treatment plants: The product is suitable for measuring the water pressure in water treatment plants.
- Pharmaceutical industry: The Pressure Instrument Series is used for maintaining the pressure in pharmaceutical processes.
- Food and Beverage industry: The product is ideal for measuring the pressure of fluids in the food and beverage industry.
- Chemical industry: The DX-131DP is used for measuring the pressure of chemicals in pipelines or tanks.
The product is highly reliable and has a high linearity, making it ideal for applications that require precise measurements. It is also designed to withstand overload pressure, ensuring its durability and longevity. In conclusion, the Pressure Instrument Series from Wuxi Daoxin Technology Co., Ltd. is a versatile and reliable product that is suitable for various applications in different industries.
Support and Services:
Our Pressure Instrument Series product is backed by comprehensive technical support and services to ensure that your instrument operates at peak performance. Our team of highly skilled technicians is available to assist with installation, calibration, and troubleshooting to ensure that your instrument meets all of your needs. We also offer a range of services, including maintenance and repair, to keep your instrument functioning optimally over its lifetime. For more information on our technical support and services, please contact us.
