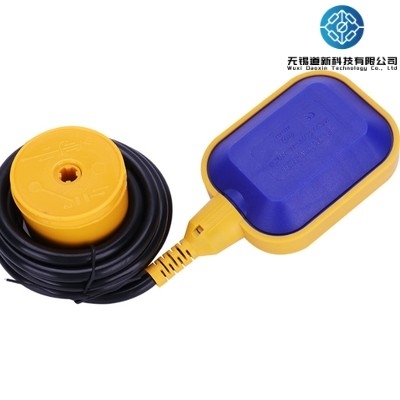

IP65 Float Level Switch 0.1MPa Float Switch For Water Tank AC220V

IP65 Float Level Switch For Water Tank 0.1MPa Float Control Switch

Introduction

The floating ball level controller is a kind of simple structure, easy to use, safe and reliable level controller. It is faster than the general mechanical switch, long working life; Compared with the electronic switch, it has the characteristics of strong resistance to load impact, a product can achieve multi-point control.

Sepicification

The working principle

Using the ball float liquid level switch magnetic float liquid level rise or fall, dry reed pipe in the position of sensor detection tube set chip, signal contact open (closed).In airtight installation guide magnetic tube with one or more of the reed pipe, then the tube through one or more hollow and internal ring magnets floating ball, rise or fall of liquids will drive the floating ball move up and down together, so that the non magnetic conductivity tube suction reed tube or disconnect, so as to output a signal switch.Float switch is a kind of simple structure, easy to use, safe and reliable level control device, it is better than the general mechanical switch is small in size, high speed, long service life, compared with the electronic switch, it has the characteristics of the load impact resistance is strong, its in shipbuilding, papermaking, printing, electrical equipment, petrochemical industry, food industry, water treatment, electrician, dyestuff industry, hydraulic machinery, etc Noodles are widely used .

The characteristics of

1. Wide applicable scope, installation forms;

2. The multipoint control;

3. passive components, stable performance, strong anti-interference ability;

4. Simple structure, convenient installation, low maintenance cost;

5. a variety of materials can choose, suitable for various occasions.

Install and use, and matters needing attention

(1) is accused of medium of liquid surface wave can't be too big.

(2) should not be accused of medium permeability impurities, should be no corrosion for copper alloy or stainless steel.

(3) when the controller of the floating ball diameter greater than installing a plate flange hole diameter, the container lid must be can tear open outfit, or USES the two-seater flange installation.

(4) should be regularly check instrument used in the security situation, all maintenance or installation work shall be operated after power off.

(5) control when installation should be grounded (on) in order to ensure safety.A) to broadcast
