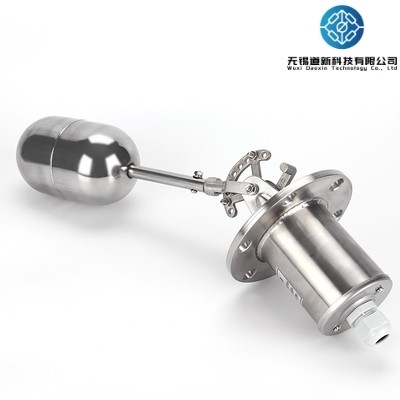

OEM Float Level Switch Stainless Steel Ball Float Level Controller

Name: OEM Float Level Switch Stainless Steel Ball Float Level Controller
Brand: Wuxi Daoxin Technology Co., Ltd.
SKU: DX-SSFLS
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Wuxi Daoxin Technology Co., Ltd.
Certification:	CCC,CE
Model Number:	DX-SSFLS

Detail Information

Place of Origin:

China

Brand Name:

Wuxi Daoxin Technology Co., Ltd.

Certification:

CCC,CE

Model Number:

DX-SSFLS

Control Region:

8mm

Agent Gravity:

≥0.8g/cm

Environment Temperature:

-20~+80°C

Working Pressure:

≤1.0MPa

Precision:

±20mm

Contactor Capacity:

220/380V AC 1A

Agent Viscoity:

≤0.02Pa.s

Top And Bottom Blind Zone:

100mm

Connection:

Flange Connection

Installation:

Side Mounted

Highlight:

High Light

Highlight:

side mounted float level switch

side mounted ball float level controller

Trading Information

Minimum Order Quantity:

Packaging Details:

carton、30cm*30cm*30cm

Delivery Time:

2-5 work days

Payment Terms:

T/T, L/C, Western Union

Supply Ability:

100+set+5

Product Description

Float Level Switch Stainless Steel Ball Float Level Controller OEM

Product Description

Explosion proof Floating ball liquid level controller switch for ship

Long life span, stable and reliable operation, easy installation, almost no maintenance;

Independent of mediums’ physical and chemical status;

Appliable for all kinds of bad medium environment with density ≥0.5g/cm³;

Available for interface detection of mediums with two different densities;

Wide application range. Pressure 0~PN160 (max. up to PN320), temperature -40~+120 ° c.

stainless steel ball float level controller can adjust liquid level in barrel, trough or well. It can adjust the level switch in barrel, trough or well automatically. It’s easy to operate and install. And it’s safe, reliable, environmental, non – poison and recuperable. This ball float level controller has an effect on resist sewage. It is widely used in the pool in household, factories and mines, used in the pool of oil, acid and alkali and used in barrel, trough and jar.

Sanitary sensor switch that suit for a variety of food and beverage equipment ,medical equipment and industrial equipment,such as household appliances, humidifiers, chillers, fog machine, constant temperature and humidity level detection machines, printing machines, medical equipment, beverage machinery, and pressure tank, the signal remote switch police, health, environmental, toxic, corrosive liquid with acid use.

UQK-01 Float Level Switch Stainless Steel Ball Float Level Controller OEM 0

Parameters---Float Ball Level Switch
Type	SSFLS-01	SSFLS-02	SSFLS-03
Control region	8mm	25-550mm	8-1000mm
agent gravity	≥0.8g/cm	≥0.8g/cm	≥0.8g/cm
Adjustment	non adjustment	adjustment	non adjustment
temprature	-40~+80°C	-40~+80°C	-40~+80°C
environment temperature	-20~+80°C	-20~+80°C	-20~+80°C
working pressure	≤1.0MPa	≤1.0MPa	≤1.0MPa
precision	±20mm	±20mm	±20mm
contactor capacity	220/380V AC 1A	220/380V AC 1A	220/380V AC 1A
agent viscoity	≤0.02Pa.s	≤0.02Pa.s	≤0.02Pa.s
top and bottom blind zone	100mm	100mm	100mm
Material	stainless steel mateiral	stainless steel mateiral	stainless steel mateiral
connection	flange connection	flange connection	flange connection
Installation	side mounted	side mounted	top mounted
