High Sensitivity Gas Analysis Series for Hydrogen Sulfide Detection Powered by DC 24V 0-95% RH Operating Humidity
Product Description:
The Gas Analysis Series is designed to operate in extreme temperatures ranging from -40°C to +70°C, making it suitable for use in various industrial settings. Its accuracy is selectable between ±3% or ±5%, ensuring that you get precise gas readings every time. The response time of the Gas Analysis Series is ≤30 seconds, making it quick to respond to gas leaks and potential hazards.
The detection range of the Gas Analysis Series is selectable between 0-100% LEL or 0-1000 ppm, giving you the flexibility to customize your gas detection needs to your specific work environment. Whether you need to detect combustible gases or toxic gases, the Gas Analysis Series is capable of detecting them all.

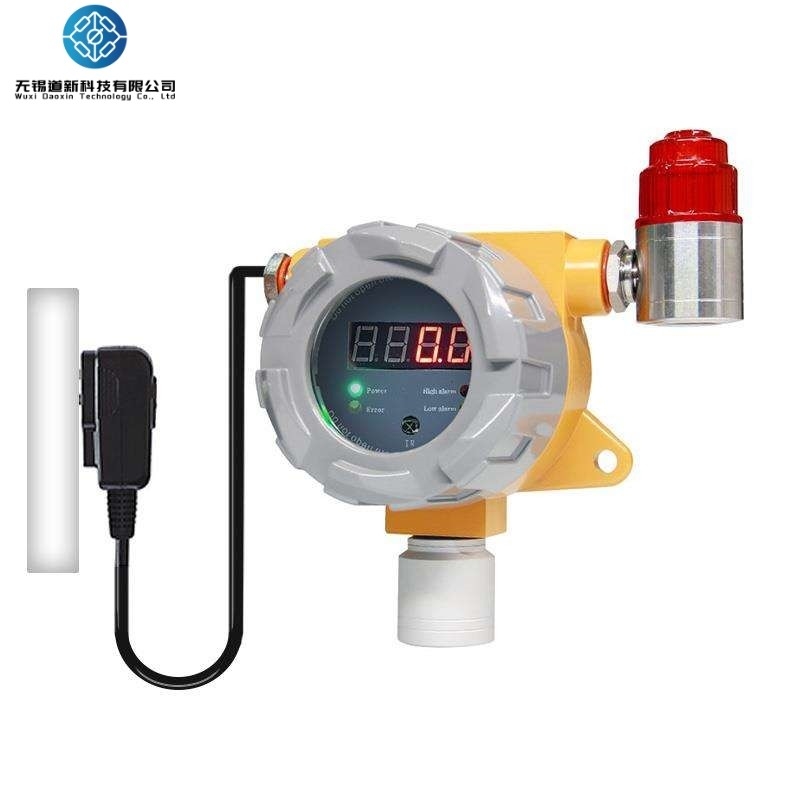

Our Gas Analysis Series fixed gas detector is a reliable and cost-effective solution for gas detection in your workplace. With its electrochemical sensor, you can rest assured that you are getting accurate and reliable gas readings every time. So, ensure the safety of your workplace with the Gas Analysis Series fixed gas detector.
Technical Parameters:
| Technical Parameter |
Value |
| Accuracy |
±3% Or ±5% (Selectable) |
| Response Time |
≤30 Seconds |
| Power Supply |
DC 24V |
| Operating Temperature |
-40°C To +70°C |
| Explosion-proof Rating |
Ex Ia IIC T6 |
| Installation Method |
Wall-mounted |
| Resolution |
0.1% LEL Or 1 Ppm |
| Detection Range |
0-100% LEL Or 0-1000 Ppm (Selectable) |
| Operating Humidity |
0-95% RH (non-condensing) |
| Gas Detection Type |
Methane, Carbon Monoxide, Hydrogen Sulfide, Oxygen, Etc. |
| Recovery Time |
N/A |
| Toxic Gas Detector |
Yes |
| Audible Alarm |
Yes |
Applications:
Wuxi Daoxin Technology Co., Ltd. offers the Gas Analysis Series product with model number DX-MKL6000T which is made in China and certified by CE and CCC. This product has a minimum order quantity of 1 and is packaged in a carton. Delivery time is 2-5 work days and payment terms are T/T, L/C, and Western Union. The supply ability of this product is 100+set+5.
The Gas Analysis Series product is equipped with a catalytic combustion, electrochemical, semiconductor, or infrared sensor which can be selected by the user depending on their application needs. The response time of this product is ≤30 seconds and it has a display screen type of LCD or LED, which is also selectable. Additionally, users can choose to have an audible and visual alarm mode with a volume of ≥80 DB.
This product is suitable for a variety of applications and scenarios, including but not limited to:
- Industrial production processes where gas analysis is required for quality control and safety, such as in chemical plants, oil refineries, and food processing factories.
- Environmental monitoring and air quality testing in public spaces, such as schools, hospitals, and offices.
- Gas leak detection in residential and commercial buildings to prevent explosions and fires, especially when equipped with the electrochemical sensor.
The Gas Analysis Series product also features RS485 communication, which allows for easy integration into existing monitoring systems. In addition, this product is explosion-proof, ensuring safe operation in hazardous environments.
Support and Services:
The Gas Analysis Series product technical support and services include:
- Expert assistance with product installation, configuration, and operation
- Troubleshooting and diagnosis of any product issues
- Repair and maintenance services
- Calibration and performance verification services
- Access to product documentation, software updates, and technical bulletins
